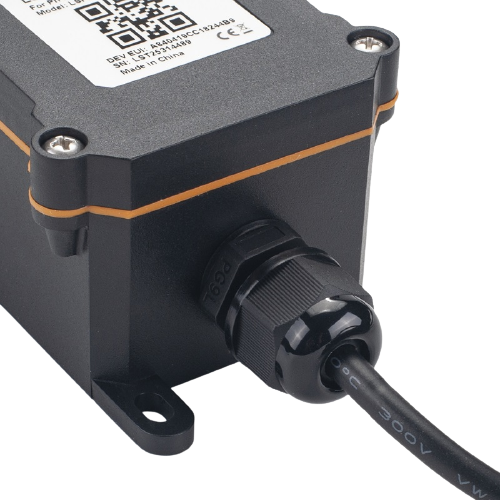

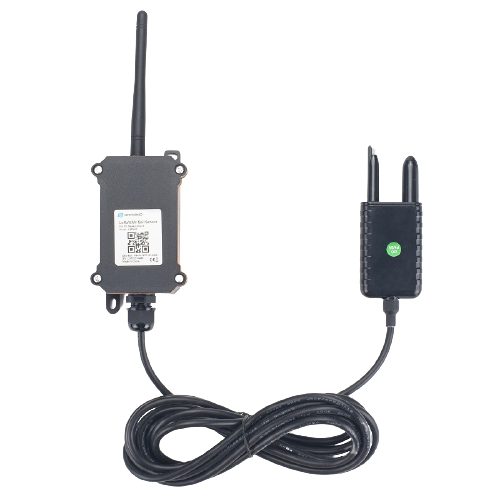

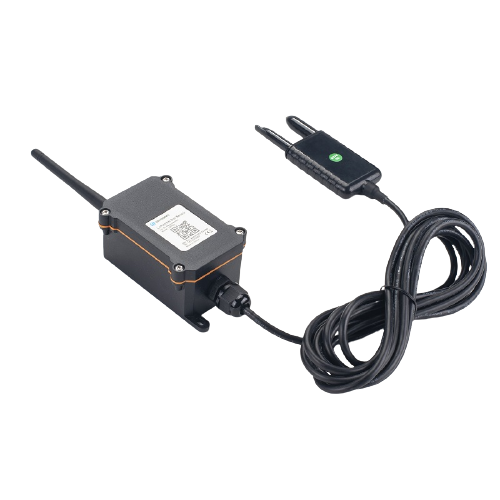

LoRaWAN Soil pH Sensor

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Sensor Measurement Range
  • Battery Capacity

SG$ 60.51 SG$ 60.51 60.51 SGD

US$ 45.00

This combination does not exist.

Add to Cart

The Dragino LSPH01 is a LoRaWAN Soil pH Sensor for IoT of Agriculture. It is designed to measure the soil PH and soil temperature, so to send to the platform to analyze the soil acid or alkali level. The probe is IP68 waterproof.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The Dragino LSPH01 is a LoRaWAN Soil pH Sensor for IoT of Agriculture. It is designed to measure the soil PH and soil temperature, so to send to the platform to analyze the soil acid or alkali level. The probe is IP68 waterproof.

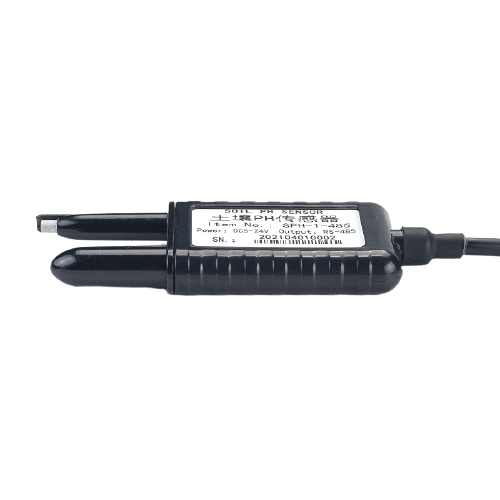

LSPH01 probe is made by Solid AgCl reference electrode and Pure metal pH sensitive electrode. It can detect soil's pH with high accuracy and stable value. The LSPH01 probe can be buried into soil for long time use.

The LoRa wireless technology used in LSPH01 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LSPH01 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each LSPH01 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.


Features

  • LoRaWAN 1.0.3 Class A

  • Ultra-low power consumption

  • Monitor soil pH with temperature compensation

  • Monitor soil temperature

  • Monitor Battery Level

  • Support pH calibration by end user

  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865

  • AT Commands to change parameters

  • Uplink on periodically

  • Downlink to change configure

  • IP66 Waterproof Enclosure

  • IP68 rate for the Sensor Probe

  • 8500mAh Battery for long term use

Applications

Specifications for LoRaWAN Soil pH Sensor

LoRaWAN
LoRa transceiver SX1262
Uncategorized
Cable length 3m
Frequency band AS923
OpenCPU No
Sensor Soil PH
Waterproof IP67
Class Class A
Power type Built-in Li-SOCL2 battery
LoRaWAN version 1.0.3
Sensor Measurement Range 0~14pH
Battery Capacity 8500mAh
