Lierda Low cost Nordic Bluetooth 5.0 Module

    SG$ 1.34 SG$ 1.34 1.34 SGD

    US$ 1.00

    This combination does not exist.

    Add to Cart

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Winext


    Lierda have been providing high tech embedded system technologies and M2M applications products reaching national standards, particularly in micro embedded systems and M2M wireless RFID technologies. With years of efforts in technology researches and product developments, Lierda has been continuously producing a lot of high functional and advanced new products and technologies. We are the leading micro-embedded and IOT system solution provider in China and have got patents for most of the core technologies in the field. We have also participated in a number of national development planning projects, supporting the community with our knowledge and technologies. And we are still working even harder to achieve better goals.  on.


    FIND OUT MORE

    Overview

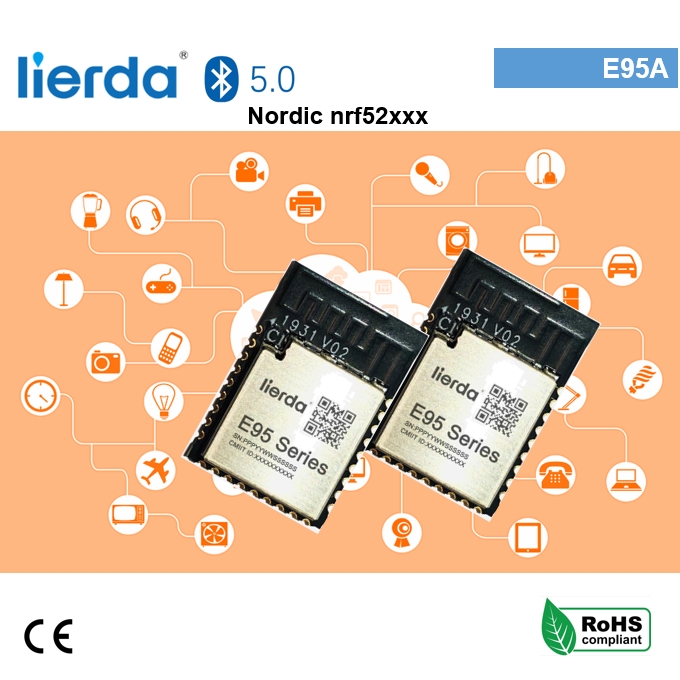

    The E95 standard hardware module is a high-performance IoT Bluetooth transceiver based on the NORDIC Bluetooth SOC nRF52 series chip. The module uses a stamp-type interface; the package is compatible with the E92 module Pin to Pin and supports external antennas and onboard antennas. The product has the characteristics of low power consumption, small size, and strong anti-interference ability.

    Features

    • Support Bluetooth 5

    • ARM® Cor tex® M4 32 bit processor, 64 MHz

    • 192 KB Flash 2 4 KB RAM

    • LE Mode 1 Mbps 、 2 Mbps

    • Link budget 99dB

    • Receive Sensitivity 95dB

    • Transmit power MAX 4dBm

    • RSSI Resolution 1 dB

    • Operation Voltage 1.7 3.6V

    • Configurable GPIO quantity 10

    • ADC accuracy 12 bits /200 ksps

    • 50 Ω R F Interface

    • Programmable peripheral interface PPI

    • DC DC Operation mode

    Applications
