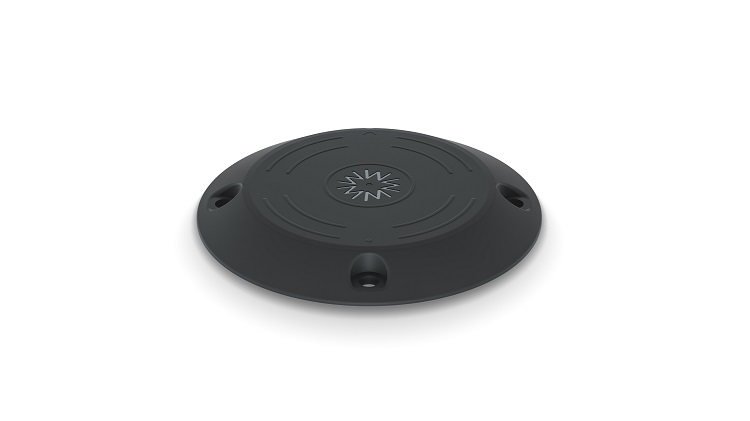

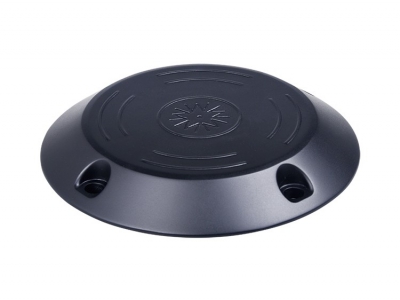

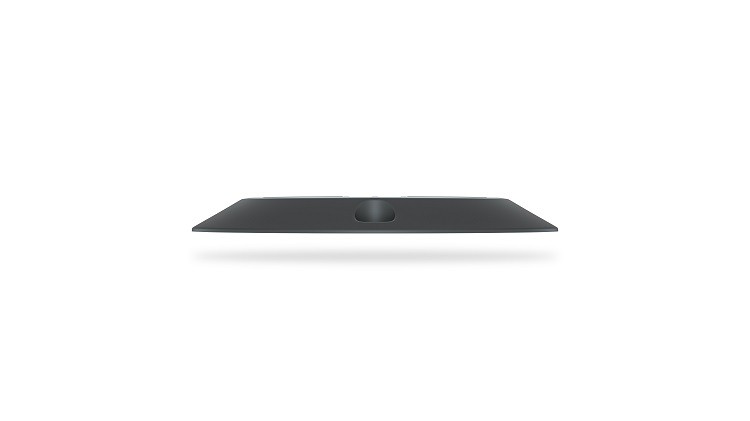

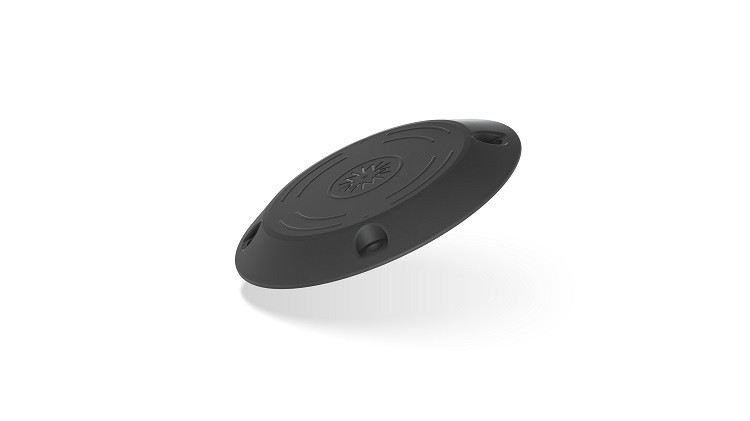

LoRaWAN Surface mounted type Smart Parking Sensor

  • Configuration Interface
  • Cable length
  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sensor Measurement Range
  • Battery Capacity

SG$ 223.68 SG$ 223.68 223.68 SGD

US$ 170.00

This combination does not exist.

Add to Cart

AN-101D is a wireless geomagnetic equipment with radar detecting in high accuracy. Easy to install on the surface of the ground, it is widely used in urban road-side parking space and other application scenarios. It provides accurate detection of the occupied and idle status and transfers the information as digital signals to relevant smart parking systems and management platform.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Winext

About us. Winext Technology is an AIoT "end-to-end" one-stop solution provider. Focusing on R&D for IoT, we offer whole stack IoT products and system solutions. Our business covers smart city, smart community, smart firefighting, smart elevator, smart street lighting, smart parking and so on


Do something

Overview


AN-101D is a surface-mounted type geomagnetic parking sensor with radar detecting based on standard LoRaWAN protocol to detect the status (occupied or empty) of a parking space. When it detects that there is a car parked in or leaving the parking space, the status information of the parking space will be sent to a LoRa gateway, and gateway will transmit the information to LoRa network server, then LoRa network server will decode the LoRa data and interface with the smart parking platform to achieve real-time management of parking lots. Easy to install in ground, it is widely used in urban road-side parking space and other application scenarios.


Features


  • Support LoRaWAN CLASS A;

  • Frequency (optional): CN470/AS923/EU868/US915/AU915/RU864-870/IN865-867

  • Support the magnetic induction of XYZ in three directions;

  • Radar detection for parking space occupation status

  • Support BLE wireless transparent communication

  • Built-in Li-SOCl2 battery

  • IP67 protection

  • Temperature range: -40℃~+80℃

  • Strong resistance to interference and easy installation

  • High accuracy: >98%

  • Low power consumption

Specifications for LoRaWAN Surface mounted type Smart Parking Sensor

LoRaWAN
Configuration Interface Bluetooth
Uncategorized
Frequency band AS923 or AU915 or KR920 or US915
Cable length NA
Sensor Magnetic
Waterproof IP68
Class Class A
Power type Battery
Sensor Measurement Range NA
Battery Capacity 16000mAh
