LoRaWAN Soil Moisture & EC Sensor

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Battery Capacity

SG$ 228.66 SG$ 228.66 228.66 SGD

US$ 168.00

This combination does not exist.

Add to Cart

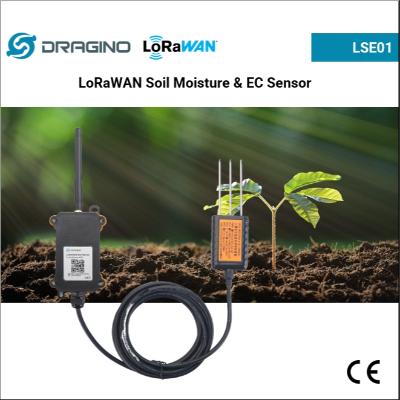

The Dragino LSE01 is a LoRaWAN Soil Moisture & EC Sensor for IoT of Agriculture. It detects Soil Moisture, Soil Temperature and Soil Conductivity, and upload the value via wireless to LoRaWAN IoT Server.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

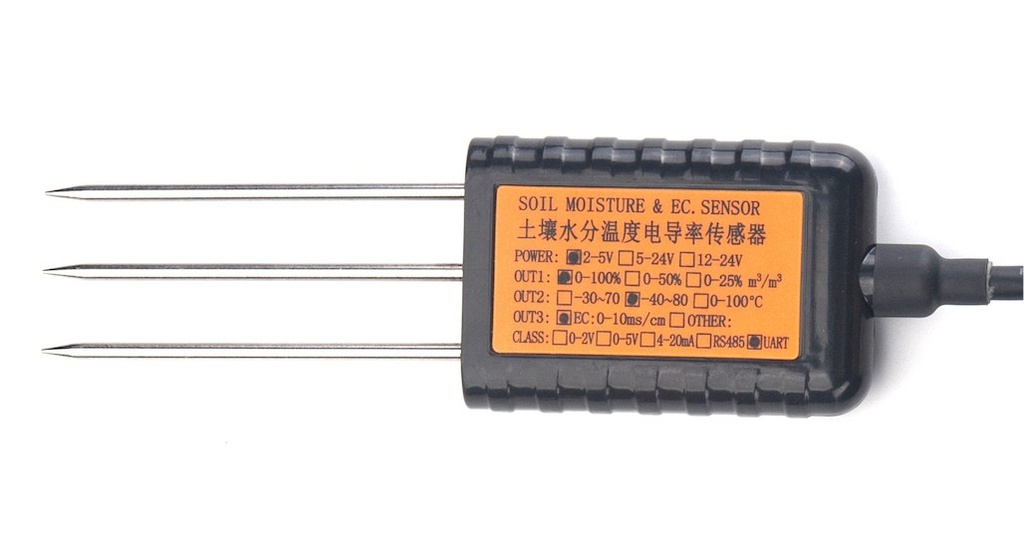

The Dragino LSE01 is a LoRaWAN Soil Moisture & EC Sensor for IoT of Agriculture. It detects Soil Moisture, Soil Temperature and Soil Conductivity, and upload the value via wireless to LoRaWAN IoT Server.It is designed to measure the soil moisture of saline-alkali soil and loamy soil. The soil sensor uses FDR method to calculate the soil moisture with the compensation from soil temperature and conductivity. It also has been calibrated in factory for Mineral soil type.

The LoRa wireless technology used in LSE01 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

LSE01 is powered by 4000mA or 8500mA Li-SOCI2 battery, It is designed for long term use up to 10 years.

Each LES01 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features

  • LoRaWAN 1.0.3 Class A

  • Ultro low power consumption

  • Monitor Soil Moisture

  • Monitor Soil Temperature

  • Monitor Soil Conductivity Temperature Compensation

  • AT Commands to change parameters

  • Uplink on periodically

  • Downlink to change configure

  • IP66 Waterproof Enclosure

  • 8500 mAh Battery for long term use

Applications

Specifications for LoRaWAN Soil Moisture & EC Sensor

LoRaWAN
LoRa transceiver SX1262
Uncategorized
Battery Capacity 4000mAh or 8500mAh
Cable length 3m
Frequency band AS923
OpenCPU No
Sensor Soil Moisture & EC
Waterproof IP66
Class Class A
Power type Battery
LoRaWAN version 1.0.3
