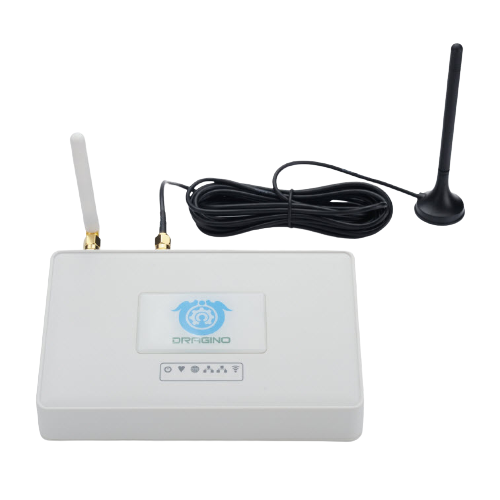

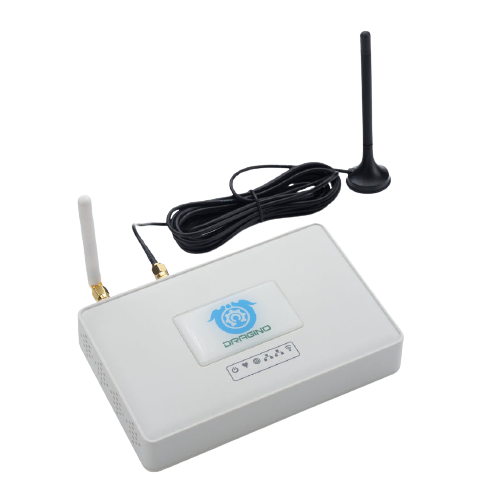

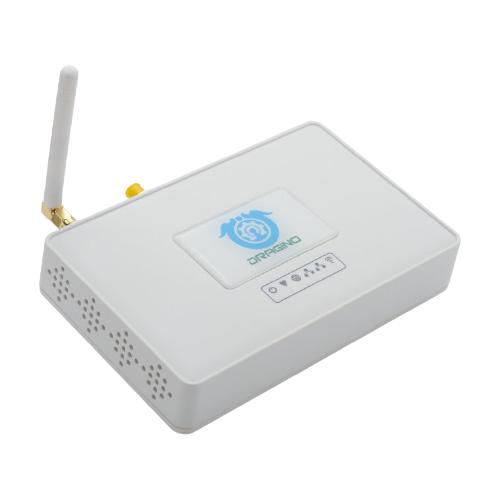

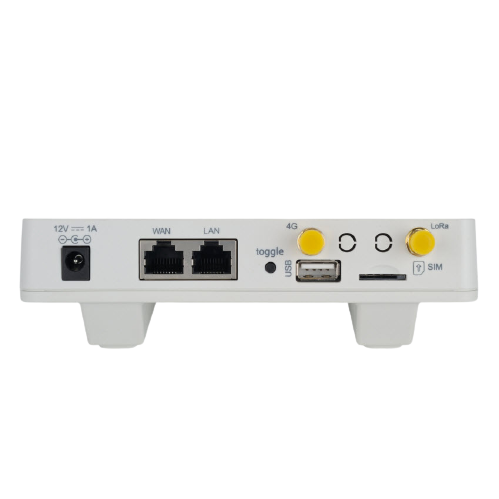

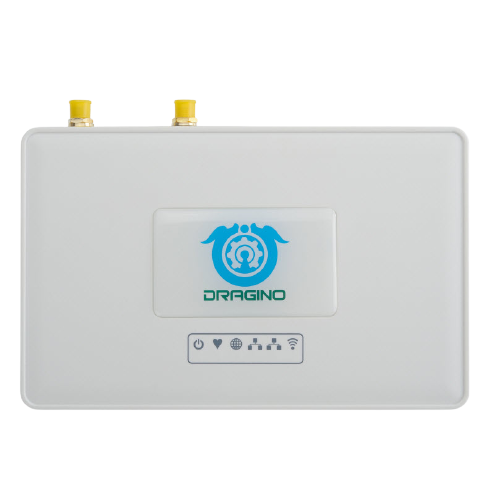

LG308 Indoor LoRaWAN Gateway

  • LoRaWAN Network Server build in
  • Open Source
  • Chipset
  • Waterproof
  • 4G LTE

SG$ 262.20 SG$ 262.20 262.2 SGD

US$ 195.00

This combination does not exist.

Add to Cart

The LG308 is an open source LoRaWAN Pico Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The LG308 is an open source LoRaWAN Pico Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

The LG308 uses semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1301 LoRa concentrator + 2 x SX1257, which provide 10 programmable parallel demodulation paths.

LG308 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRa network.

LG308 has optional built-in LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.



Features

  • Open Source OpenWrt system

  • Managed by Web GUI, SSH via LAN or WiFi

  • Internet connection via LAN, WiFi, Or 3G/4G via optional LTE module

  • Emulates 49x LoRa demodulators

  • LoRaWAN Gateway

  • 10 programmable parallel demodulation paths

Applications

Specifications for LG308 Indoor LoRaWAN Gateway

LoRaWAN
LoRaWAN Network Server build in Yes
Development mode
Open Source OpenWRT
Uncategorized
4G LTE without 4G LTE or EC25-E or EC25-A or EC25-AU or EC25-J
Chipset SX1301 + 2 x SX1257
Waterproof IP30
