LBT1 -- LoRaWAN BLE Indoor Tracker

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Battery Capacity

SG$ 60.51 SG$ 60.51 60.51 SGD

US$ 45.00

This combination does not exist.

Add to Cart

The Dragino LT series I/O Modules are Long Range LoRa I/O Controller. It contains different I/O Interfaces such as: analog current Input, analog voltage input, relay output, digital input and digital output etc. The LT I/O Modules are designed to simplify the installation of I/O monitoring.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

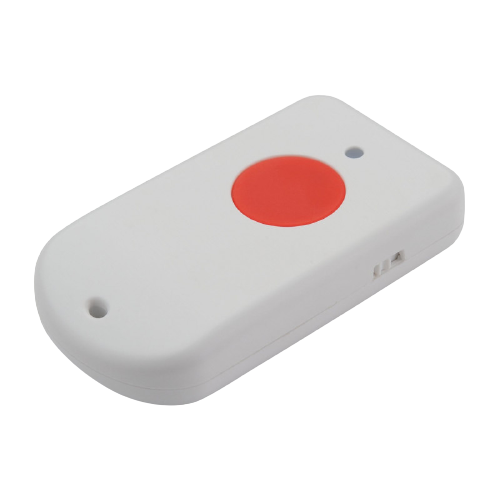

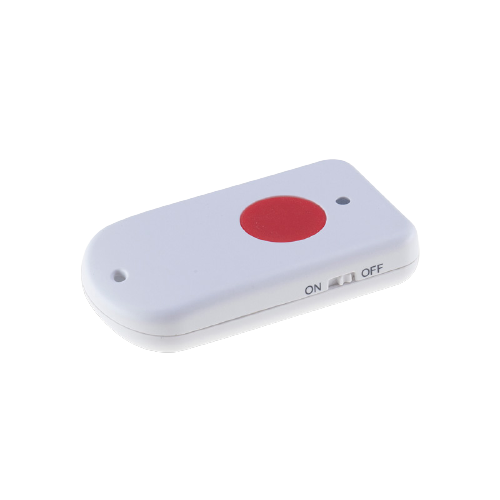

LBT1 is a Long Range / low power consumption LoRaWAN Bluetooth tracker. LBT1 scans and find the nearest i-Beacon info and send to IoT server via LoRaWAN wireless network. IoT Server should have a pre-configure position mapping for beacons in order to trace the location of LBT1 tracker.

LBT1 targets for indoor positioning for people and things. LBT1 has motion detect feature, it will also detect walk steps and uplink the value.

LBT1 is powered by 1000mA rechargeable Li-on battery and recharge circuit, which target for real time tracking with short tracking uplink interval.

Each LBT1 pre-loads with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect if there is network coverage, after power on.

Features

  • LoRaWAN 1.0.3 Class A

  • STM32L072CZT6 MCU

  • Frequency bands KR920/US915/IN865/EU868/AS923/AU915

  • Bluetooth iBeacon scanning

  • Walking steps counter

  • Power Monitoring

  • Charging circuit via USB port

  • Tri-color LED, Alarm button

Applications

Specifications for LBT1 -- LoRaWAN BLE Indoor Tracker

LoRaWAN
LoRa transceiver SX1276
Uncategorized
Cable length None
Frequency band AS923
OpenCPU No
Sensor GPS
Waterproof IP30
Class Class A
Power type Chargeable Battery
LoRaWAN version 1.0.3
Battery Capacity 1000mAh Li-ion
