Industrial LoRaWAN Temperature Transmitter

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Sensor Measurement Range
  • Battery Capacity

SG$ 60.51 SG$ 60.51 60.51 SGD

US$ 45.00

This combination does not exist.

Add to Cart

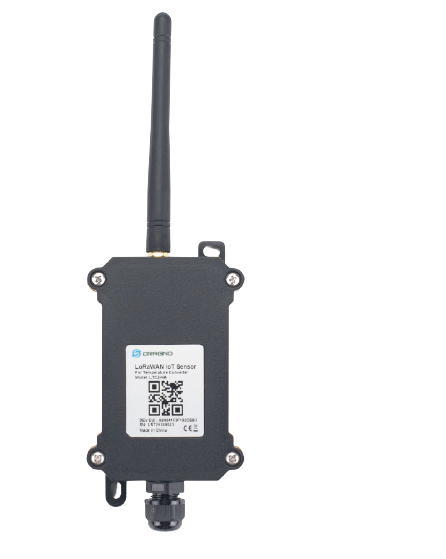

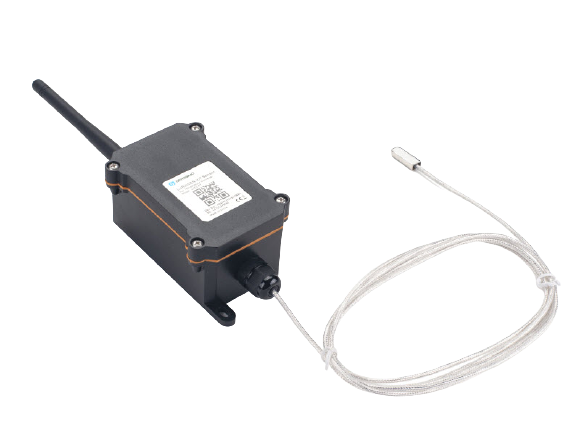

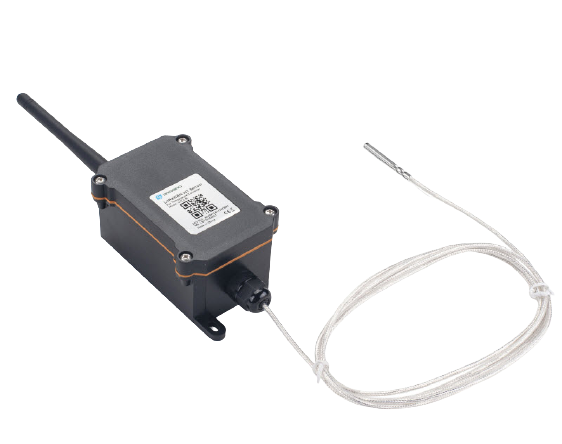

The Dragino LTC2 Industrial LoRaWAN Temperature Transmitter is designed to monitor temperature for different environment. It supports to read PT100 probe and convert the value to temperature and uplink to IoT server via LoRaWAN protocol.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The Dragino LTC2 Industrial LoRaWAN Temperature Transmitter is designed to monitor temperature for different environment. It supports to read PT100 probe and convert the value to temperature and

uplink to IoT server via LoRaWAN protocol.

LTC2 supports datalog feature. User can retrieve the sensor value via LoRaWAN downlink command.

LTC2 is powered by 8500mA Li-SOCI2 battery for long time measurement. The battery can run 2~10 years depends on the network environment and working mode.

Each LTC2 has two internal 16 bit ADC interfaces and are calibrated on 12 set resistors to make sure the accuracy measurement on wide range.

LTC2 is LoRaWAN v1.0.3 compatible. Each LTC2 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.

Features

  • LoRaWAN v1.0.3 Class A

  • max: 2 x monitor temperature channels

  • Support 3 -wire PT-100

  • 8500mAh Li-SOCI2 Battery

  • Firmware upgrade via console

  • Wall Mountable

  • Configurable via LoRa or UART

  • Datalog and retrieve via LoRaWAN

  • Use pre-load PT100 probe or 3rd PT100 probe

  • Factory calibration for different resistance range

  • Support accuracy measure of resistance and upload

  • Battery Monitoring and upload

Applications

Specifications for Industrial LoRaWAN Temperature Transmitter

LoRaWAN
LoRa transceiver SX1276
Uncategorized
Sensor Build in sensor or Flat type or Food Safety or Low Temperature or High temperature or IP68
Cable length 3m
Frequency band AS923
OpenCPU No
Waterproof IP67
Class Class A
Power type Battery
LoRaWAN version 1.0.3
Sensor Measurement Range -40°C ~ 80°C
Battery Capacity 8500mA
