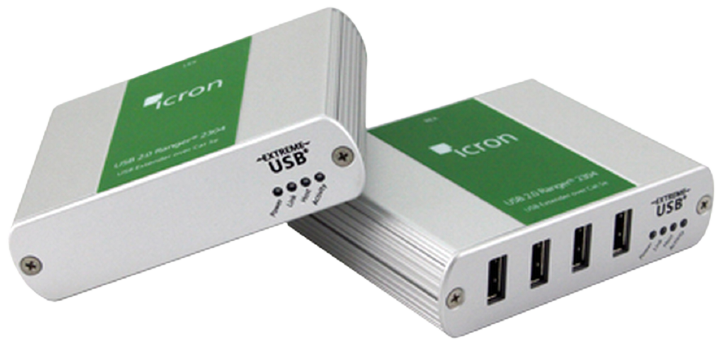

Icron Ranger 2304 4-port Cat 5e 100 meter USB 2.0 extender

  • USB standard
  • Distance
  • Power Adapter
  • USB ports
  • Transmission Media

SG$ 500.00 SG$ 500.00 500.0 SGD

US$ 380.00

This combination does not exist.

Add to Cart

The USB 2.0 Ranger® 2304 is a four port USB 2.0 high speed extension solution, enabling USB 2.0 connections at up to 480Mbps over 100m/330ft of CAT 5e/6/7 cabling. The Ranger 2304 is the latest USB 2.0 extender system from Icron, offering the same reliable USB 2.0 extension benefits as the Ranger 2204, but with faster throughputs when using read/write devices such as external hard drives as well as supporting a greater number of connections (up to 31 devices and hubs). The Ranger 2304 provides an integrated four port remote USB 2.0 powered hub delivering 600mA to each port supporting all USB 1.1, 2.0 and 3.0 device types (up to 480Mbps).


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Icron

Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military,  Industrial Automation,  Machine Vision, ProAV, Education, and Mining/Exploration. Icron’s patented extension technology extends USB and video devices over many media types including CAT 5e/6/7, Fiber, Wireless, PowerLine and over a corporate LAN.


Overview

The Ranger 2304 provides true USB 2.0 extension at up to 480Mbps over CAT 5e/6/7 cabling, without the need of additional software drivers. A true plug-and-play solution, the Ranger 2304 is compatible with all leading operating systems, and supports all USB 3.0, 2.0 and 1.1 peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards across a dedicated CAT 5e/6/7 connection. An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.

Features

  • Extends USB 3,0, 2.0, and 1.1 (both low-speed and full-speed) devices

  • Operates with USB 3.0, 2.0, and 1.1 hosts

  • Supports all USB devices up to 480Mbps

  • Uses a standard solid core Cat 5e cable for easy installation

  • Number of devices can be increased using additional USB hubs

  • FCC Class B

  • Rugged metal enclosure

  • ExtremeUSB® suite of features:

    • Transparent USB extension

    • True plug and play; no software drivers required

    • Works with all major operating systems: Windows®, macOS™, and Linux®

Specifications for Icron Ranger 2304 4-port Cat 5e 100 meter USB 2.0 extender

USB Extender
USB standard USB 2.0
Distance 100m
Uncategorized
Power Adapter North American or Europe or United Kingkom or Australia or Japan
USB ports 4 USB ports
Transmission Media CAT 5e/6/7
