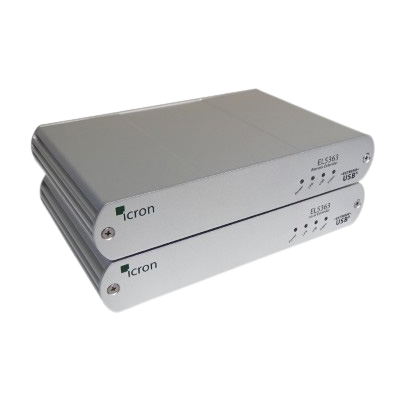

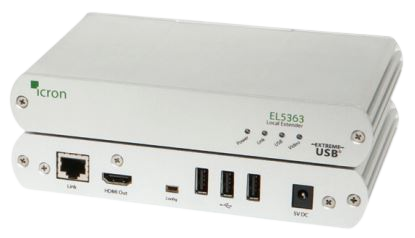

EL5363 KVM Extender HDMI + USB 2.0 over 100m CAT 5e/6/7

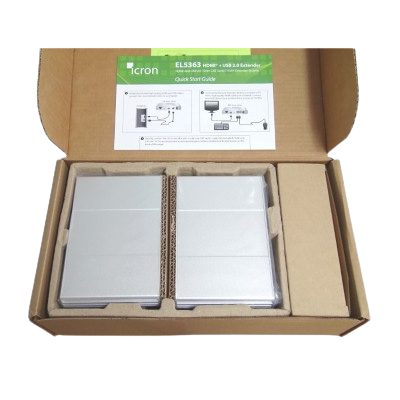

The EL5363 comes with the following items in the box:
Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
1 x HDMI cable
2 x 100-240V power adapter
2 x Country specific power cord
Quick start guide
*Please be aware that the EL5363 does NOT come with a CAT5e cable.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The EL5363 KVM Extender provides HDMI uncompressed HD video, and USB 2.0 up to 100 meters over a single CAT 5e/6/7 cable. This extender supports HDMI video features such as 1080p, 4Kp30, Deep Color, and CEC/HDCP pass-through. This KVM extender can be used in applications for proAV, interactive digital signage, security, medical, and industrial. There is no video degradation even at the full 100-meter distance.
- Long Distance: Video and USB over a single solid core shielded CAT 5e/6/7 cable at distances up to 100m (330ft)
- Full uncompressed 1080p or 1920 x 1200 resolution HD video
- Deep Color
- x.v. Color
- Lip Sync Pass-through
- CEC Pass-through
- HDCP Pass-through
- USB 2.0: all device types supporting up to 40 Mbps. Recommended with keyboard, mouse, flash drive, printer, speakers, microphones, USB 1.1 web camera, and other USB devices which require moderate amounts of bandwidth.
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, OS X®, and Linux®
- Mounting Kit: allows units to be mounted to walls, desks or trays for 19″ racks.
- 2-year warranty
Specifications for EL5363 KVM Extender HDMI + USB 2.0 over 100m CAT 5e/6/7
|Video Type||HDMI Uncompressed|
|Maximum Resolution||4K, 1080p or 1920 x 1200|
|USB 2.0 Throughput||40Mbps|
|Power Adapter||Australia or Europe or Japan or North America or Unit Kingdom|
|Transmission Media||CAT 5e/6/7|
