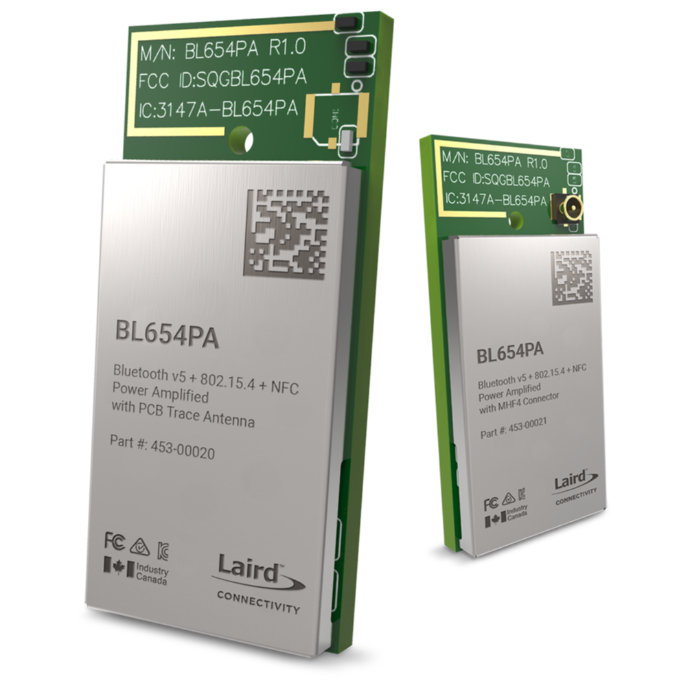

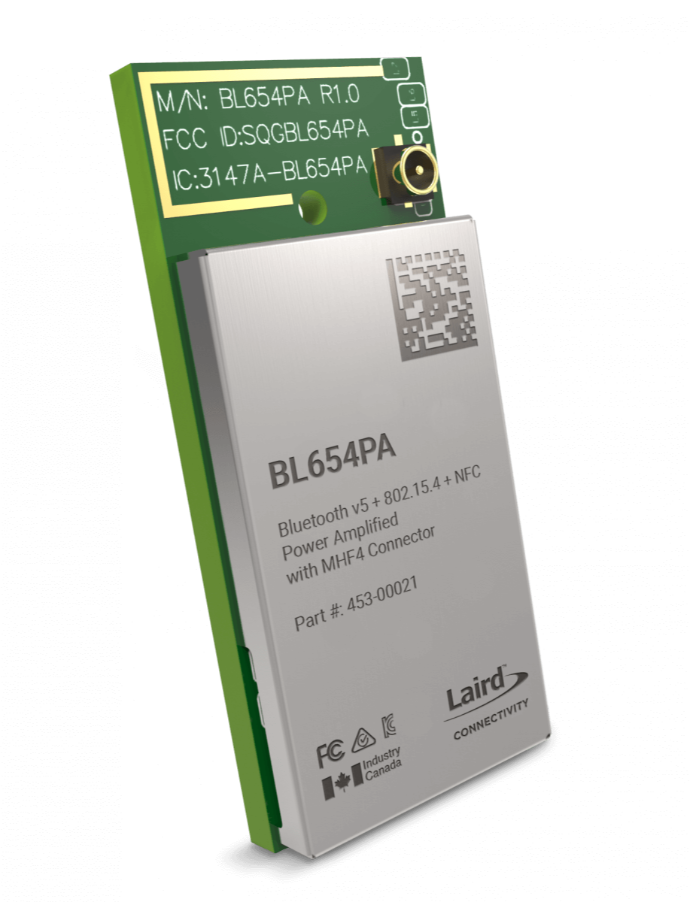

BL654PA Bluetooth 5.1 long range module

  • BT Class
  • Interfaces
  • Other wireless
  • Operation Temperature
  • Stack on Board
  • Antenna
  • BLE connection
  • Bluetooth mode
  • Certification
  • Transmit Power
  • Chipset

SG$ 17.51 SG$ 17.51 17.51 SGD

US$ 12.95

This combination does not exist.

Add to Cart

he BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with the maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA / LNA support for even greater range.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird Connectivity

Laird Connectivity simplifies the rapid integration of wireless technologies with market-leading wireless modules and antennas, integrated sensor and gateway platforms, and customer-specific wireless solutions. Our best-in-class support and comprehensive engineering services help reduce risk and improve time-to-market.


FIND OUT MORE

Overview


Building on Laird Connectivity’s expertise with Nordic from the BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA / LNA support for an even greater range.


Powered by Nordic’s nRF52840 silicon, the small form factor BL654PA modules and DVKs provide for a secure, robust BLE and Cortex-M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for a simple, intuitive AT Command Set, as well as Laird Connectivity’s own smartBASIC environment.


Features


  • Bluetooth v5.1 Bluetooth Low Energy (BLE) plus NFC

  • Widest range of configurable interfaces: UART, I2C, SPI, ADC, GPIO, PWM,FREQ, USB, and NFC

  • Industrial Temp Rating (-40º to +85º C)

  • Ultra-Small footprint (22 mm x 10 mm x 2.2 mm)

  • BLE Peripheral/Central roles with DTM embedded

  • 2Mbps & LE Long Range: Support for 2 Mbps, 1 Mbps, & 125 kps coded

  • Hostless operation – Internal MCU reduces BOM

  • Powerful Core Cortex-M4F (1 Mbit Flash, 256 k RAM)

  • Built on years of experience with Nordic (BL600 & BL652 Series)

  • Fully featured development kit everything needed to start BLE development

  • Application Design Choice: Leverage Laird’s smartBASIC or simple AT Command Set

  • Integrated Power Amplifier: Up to +18 dBM output power (up to +14 dBm in LE Coded mode – 125 kbps PHY


Applications

Specifications for BL654PA Bluetooth 5.1 long range module

Antenna External Antenna or Integrate Antenna
BT Class Class 1
Interfaces UART
Other wireless NFC
Operation Temperature -40 °C ~ +85 °C
Stack on Board Yes
BLE connection 20
Bluetooth mode BLE5.1
Certification FCC/IC/CE/MIC/RCM
Transmit Power 18dBm
Chipset nRF52840
