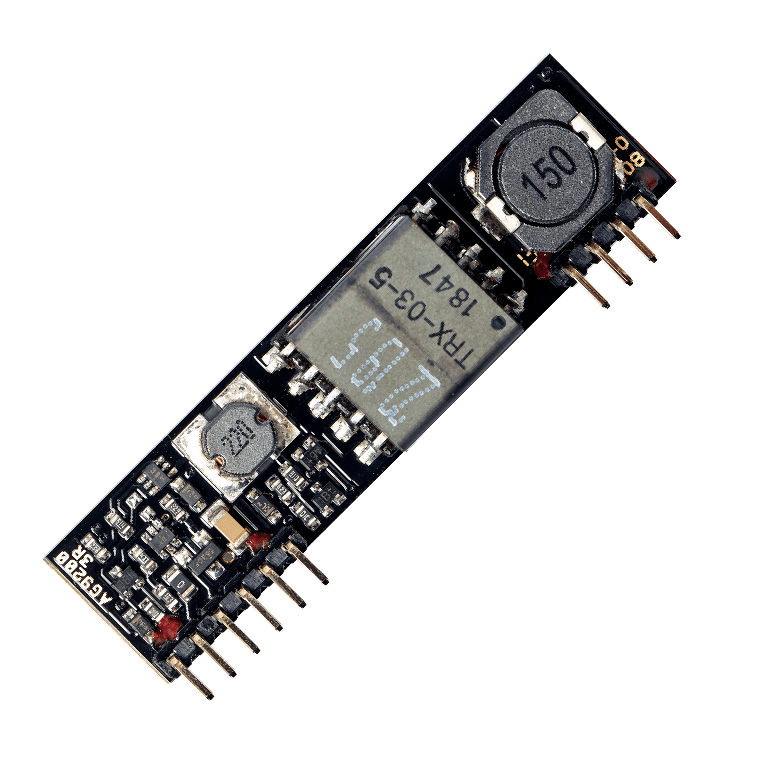

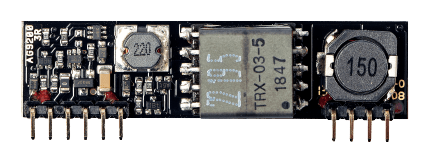

Ag9205-S PD Module, High Efficiency, Isolated DC-DC Converter
PD Module, High efficiency, Isolated DC-DC converter, IEEE802.3af compliant, 13W@5V, SIL.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The Ag9205 is a PoE module designed for higher efficiency than standard Silvertel products. The module extracts power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power over Ethernet (PoE) standard. This is a total solution, including a 1.5kV isolation barrier between the input and output. The Ag9205S has been specifically designed to give more power at 5V output voltage than standard Ag9705 series parts.
Features
IEEE802.3af compliant
Small Package Size – 56mm(L) x 18mm(W) x 14mm(H) Highly efficient DC/DC converter (up to 88% ~ 5V 13W)
Low output ripple and noise
Wide Input voltage range
Overload and short-circuit protection
Adjustable Output
1500V isolation (input to output)
Simple integration
Specifications for Ag9205-S PD Module, High Efficiency, Isolated DC-DC Converter
| Output Voltage | 5V |
| Role | PD |
| Compliance | IEEE 802.3af 13W |
| Temperature Range | Normal |
| Power module package | SIL |
| Build in Bridge | Yes |
| Power isolution | 1500Vdc |
| Protection | Overload and short-circuit |
| Input Voltage | 36~57V |
