Ag5324 PD Module, 30W, IEEE802.3at compliant, 12V or 24V

  • Output Voltage
  • Package
  • Role
  • Compliance
  • Temperature Range
  • Build in Bridge
  • Power isolution
  • Protection

SG$ 16.40 SG$ 16.40 16.3967 SGD

US$ 12.80

This combination does not exist.

Add to Cart

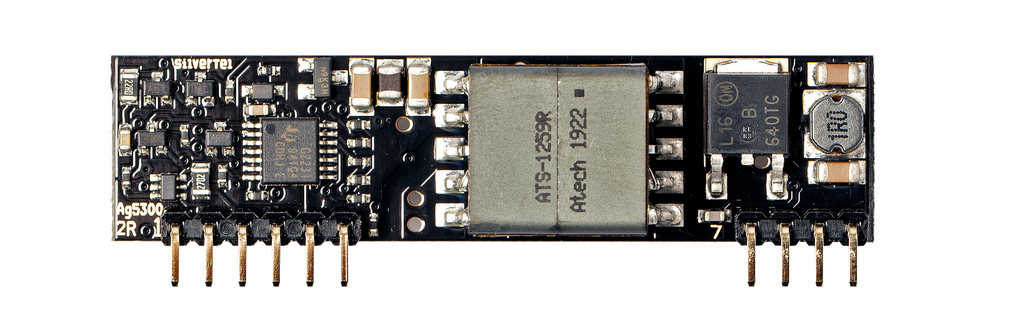

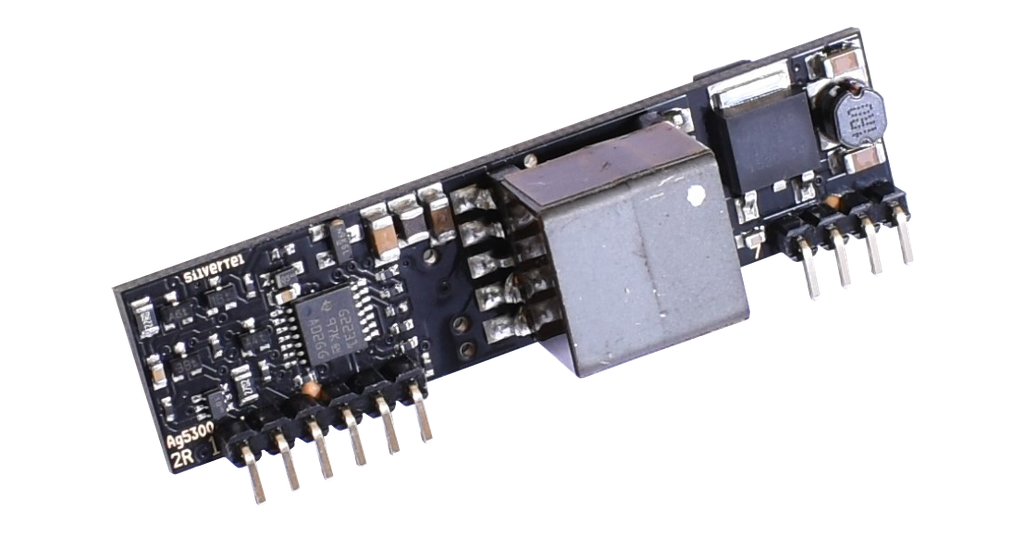

The Ag5300 series are low cost PoE+ modules, in a Single-In-Line (SIL) package, that can deliver up to 30 Watts of output power. Options for 12V DC (Ag5300) or 24V DC output (Ag5324) are available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W.  Smart Lighting modules combining PoE with LED driver functionality.  Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview

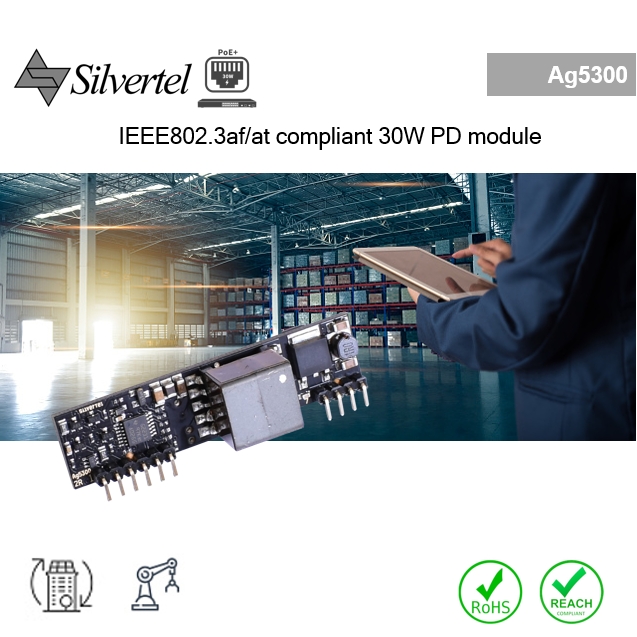

The Ag5300 series are low-cost PoE+ modules, in a Single-In-Line (SIL) package, that can deliver up to 30 Watts of output power. Options for 12V DC (Ag5300), 5V DC output (Ag5305) or 24V DC output (Ag5324) are available.  The module signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at. The exceptionally small footprint and package size, make it ideal for space-restricted applications such as IP Video Telephones, WiMAX access points, PTZ cameras and remote computer terminals. Ag5324 is well suited to building automation and industrial control applications requiring 24V with the ability of Ag5324 to operate over the industrial temperature range from -40 to +85C further extending its’ versatility.

 Features

  • Smallest ‘at’ solution in the world

  • SIL - 57mm(L)x18mm(W)x14mm(H)

  • 5V, 12V & 24V output options

  • Adjustable output voltage

  • Input voltage range 37V to 57V

  • Overload, thermal and short-circuit protection

  • Isolated high-efficiency DC/DC converter

  • Minimal low-cost external components required

  • Low cost & simple integration

Specifications for Ag5324 PD Module, 30W, IEEE802.3at compliant, 12V or 24V

Output Voltage 12V or 24V or 5V
Package SIL
Role PD
Compliance IEEE 802.3at 30W
Temperature Range Normal
Build in Bridge No
Power isolution 1500Vdc
Protection Overcurrent & short circuit
