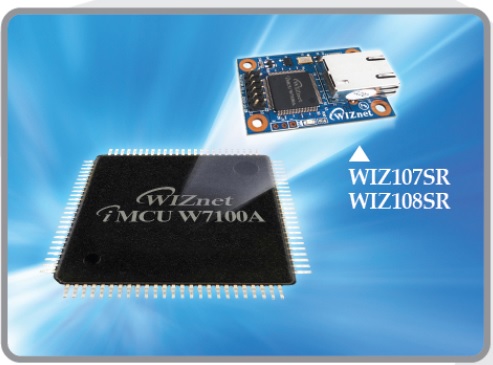

W7000 Pre-grogrammed Chip

PHY
Core IP

SG$ 0.00 SG$ 0.00 0.0 SGD

US$ 0.00

This combination does not exist.

Add to Cart

The TCP/IP core is a market-proven hardwired TCP/IP stack with an integrated Ethernet MAC. The Hardwired TCP/IP stack supports the TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been used in various applications for years. W7000 serias suits best for users who need Internet connectivity for application.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

WIZnet

WIZnet is a fabless IT company that provides Internet processors for the IoT. WIZnet is the sole innovator to patent the hardwired TCP/IP technology into a microprocessor chip in 2001. Since then, a yearly average of 10 million WIZnet chips have been used in various embedded Internet devices worldwide.

More Detail

Overview

iMCU W7000 is the one-chip solution which integrates an 8051/Cortex M0 compatible micro-controller, 64KB SRAM and hardwired TCP/IP core for high performance and easy development. The TCP/IP core is a market-proven hardwired TCP/IP stack with an integrated Ethernet MAC & PHY. The Hardwired TCP/IP stack supports the TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been used in various applications for years.

Features

8 Sockets
SRAM for socket: Max. 32KB
MII (Medium-Independent Interface)
The Hardwired TCP/IP stack supports the TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE

Applications

Specifications for W7000 Pre-grogrammed Chip

SoC
PHY	Buildin PHY or External PHY
CPU
Core IP	8051 or ARM Cortex-M0
